Dominant eigenvector on the circle#

This first problem is the classical Rayleigh-quotient example for optimization on a sphere and appears throughout the matrix-manifold optimization literature [Absil et al., 2008, Boumal et al., 2014, Edelman et al., 1998]. We use \(S^1\subset\mathbb{R}^2\) so that the optimizer and objective can be seen directly.

For a symmetric matrix \(A\), a dominant eigenvector maximizes the Rayleigh quotient. On the unit circle the denominator is one, so the problem is

\[ \min_{x\in S^1} f(x), \qquad f(x)=-x^\top A x. \]

The sign is not identifiable: \(x\) and \(-x\) represent equally valid eigenvectors.

import jax
jax.config.update("jax_enable_x64", True)
import jax.numpy as jnp
import matplotlib.pyplot as plt

from geojax.geometry import Sphere
from geojax.optimization import ConjugateGradient, Minimize

plt.rcParams.update({
    "figure.dpi": 200,
    "savefig.dpi": 240,
    "font.size": 11,
    "axes.titlesize": 12,
    "axes.labelsize": 11,
    "xtick.labelsize": 10,
    "ytick.labelsize": 10,
    "legend.fontsize": 9,
    "axes.spines.top": False,
    "axes.spines.right": False,
})

A = jnp.array([[3.0, 1.0], [1.0, 1.0]])
M = Sphere(size=2)
x0 = M.project(jnp.array([-0.15, 1.0]))

def cost(x):
    return -x @ A @ x

GeoJAX obtains the ambient derivative of cost with JAX, projects it to the tangent line, and follows geodesics on the circle.

problem = Minimize(
    M=M,
    cost=cost,
    x0=x0,
    solver=ConjugateGradient(maxiter=80, tolgradnorm=1e-10, verbosity=0),
)
x_hat, final_cost, history = problem.solve()

eigenvalues, eigenvectors = jnp.linalg.eigh(A)
x_exact = eigenvectors[:, -1]
if jnp.dot(x_hat, x_exact) < 0:
    x_hat = -x_hat

angle_error = jnp.arccos(jnp.clip(jnp.dot(x_hat, x_exact), -1.0, 1.0))
print(f"largest eigenvalue : {float(eigenvalues[-1]):.10f}")
print(f"estimated vector   : {x_hat}")
print(f"angular error      : {float(angle_error):.3e} radians")
print(f"iterations         : {history[-1].iter}")

largest eigenvalue : 3.4142135624
estimated vector   : [-0.92387954 -0.38268341]
angular error      : 1.490e-08 radians
iterations         : 12

Visual report#

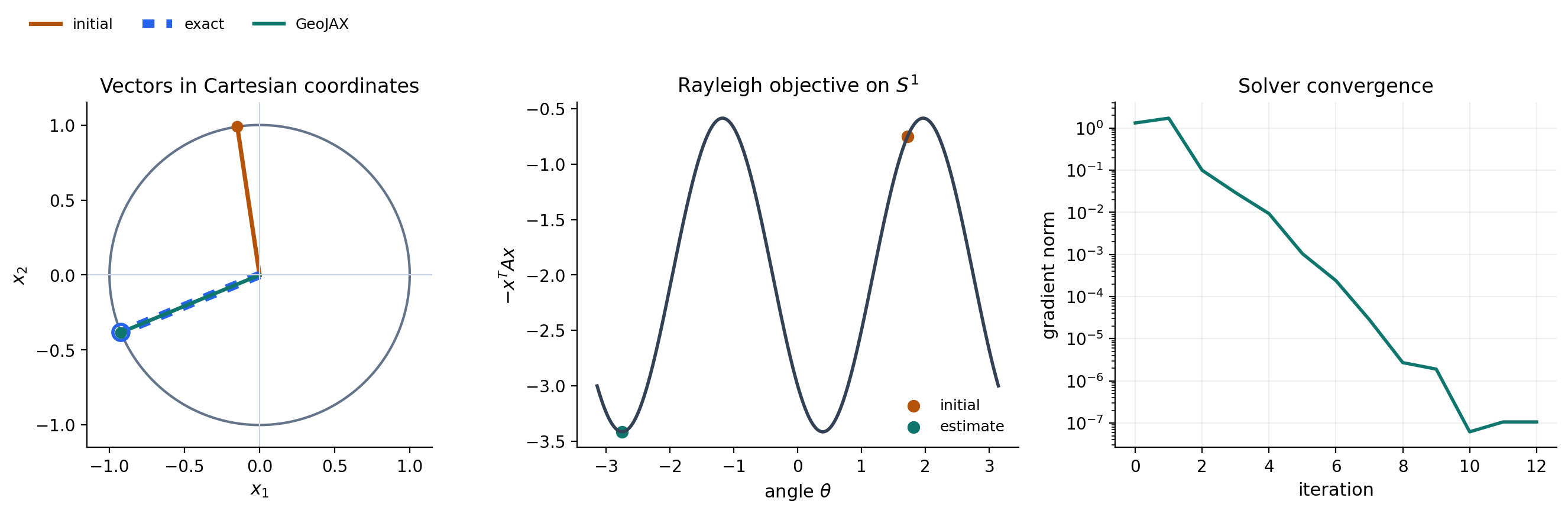

The first panel places the initial, exact, and estimated vectors in Cartesian coordinates. The objective is periodic in the angle and has two equivalent minima. The final panel shows convergence of the Riemannian gradient norm.

theta = jnp.linspace(-jnp.pi, jnp.pi, 600)
circle = jnp.stack([jnp.cos(theta), jnp.sin(theta)], axis=1)
landscape = jax.vmap(cost)(circle)
theta0 = jnp.arctan2(x0[1], x0[0])
theta_hat = jnp.arctan2(x_hat[1], x_hat[0])
gradnorm = jnp.array([max(row.gradnorm, 1e-16) for row in history])

fig, axes = plt.subplots(1, 3, figsize=(13.8, 4.4))

ax = axes[0]
ax.plot(circle[:, 0], circle[:, 1], color="#64748b", linewidth=1.5)
for vector, color, label, style, linewidth in [
    (x0, "#b45309", "initial", "-", 2.6),
    (x_exact, "#2563eb", "exact", (0, (1.4, 1.4)), 5.2),
    (x_hat, "#0f766e", "GeoJAX", "-", 2.3),
]:
    ax.plot([0, vector[0]], [0, vector[1]], color=color, linestyle=style,
            linewidth=linewidth, label=label)
    if label == "exact":
        ax.scatter(
            vector[0], vector[1], facecolors="none", edgecolors=color,
            linewidth=2.0, s=95, zorder=3,
        )
    else:
        ax.scatter(vector[0], vector[1], color=color, s=38, zorder=4)
ax.axhline(0, color="#cbd5e1", linewidth=0.8)
ax.axvline(0, color="#cbd5e1", linewidth=0.8)
ax.set(xlim=(-1.15, 1.15), ylim=(-1.15, 1.15), aspect="equal",
       title="Vectors in Cartesian coordinates", xlabel="$x_1$", ylabel="$x_2$")
vector_legend = ax.get_legend_handles_labels()

ax = axes[1]
ax.plot(theta, landscape, color="#334155", linewidth=2)
ax.scatter([theta0], [cost(x0)], color="#b45309", s=45, label="initial")
ax.scatter([theta_hat], [cost(x_hat)], color="#0f766e", s=45, label="estimate")
ax.set(title="Rayleigh objective on $S^1$", xlabel="angle $\\theta$", ylabel="$-x^T A x$")
ax.legend(frameon=False)

ax = axes[2]
ax.semilogy(jnp.arange(len(history)), gradnorm, color="#0f766e", linewidth=2)
ax.set(title="Solver convergence", xlabel="iteration", ylabel="gradient norm")
ax.grid(alpha=0.2)

fig.legend(
    *vector_legend,
    frameon=False,
    loc="upper left",
    bbox_to_anchor=(0.045, 0.995),
    ncol=3,
)
fig.tight_layout(rect=(0.0, 0.0, 1.0, 0.90))
plt.show()
../_images/3265f00225fc3a29d55934a75622a57bb5d997ccb4b8c31a4c13853a4b5f42a2.png

The estimated vector agrees with the direct eigendecomposition up to numerical precision. More importantly, every iterate remains on the unit circle; no penalty or post-hoc normalization is needed in the optimization model.
