Hand Poses in Kendall Shape Space

This tutorial analyzes real skeletal hand poses using Kendall shape space. A hand is represented by \(22\) joints in \(\mathbb R^3\). We want to compare the shape of a pose without letting its location, physical scale, or global orientation dominate the result. Kendall’s quotient construction supplies the statistical shape space used here [Kendall, 1984].

The data are a 52-pose subset of the SHREC’17 3D hand-gesture dataset, distributed by the Geomstats dataset module. There are 25 Grab poses and 27 Expand poses. The source study is De Smedt et al.’s SHREC’17 hand-gesture track [De Smedt et al., 2017].

GeoJAX vendors the two small source text files with this page, so the documentation remains executable without downloading data at build time. See the accompanying license and provenance notice for the upstream source and redistribution terms.

Shape-space model

For \(m\) landmarks in \(\mathbb R^d\), a pre-shape is an \(m\times d\) matrix \(X\) satisfying

\[ \mathbf 1^\top X=0, \qquad \lVert X\rVert_F=1. \]

Centering removes translation and normalization removes scale. Kendall shape space additionally identifies \(X\) and \(XR\) for every \(R\in SO(d)\), thereby removing global orientation. Its distance is the spherical distance after orientation-preserving Procrustes alignment:

\[ d([X],[Y]) =\arccos\left(\max_{R\in SO(d)}\langle X,YR\rangle_F\right). \]

We will compute a Fréchet mean for each pose class and classify held-out hands by their nearest intrinsic mean.

import jax
jax.config.update("jax_enable_x64", True)

from pathlib import Path

import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np

from geojax.geometry import KendallShape
from geojax.learning import (
    frechet_anova,
    nearest_centroid_classifier,
    pairwise_distances,
)

plt.rcParams.update({
    "figure.dpi": 200,
    "savefig.dpi": 240,
    "font.size": 11,
    "axes.titlesize": 12,
    "axes.labelsize": 11,
    "xtick.labelsize": 10,
    "ytick.labelsize": 10,
    "legend.fontsize": 9,
    "axes.spines.top": False,
    "axes.spines.right": False,
})

Load the landmark data

The files are the original whitespace-separated Geomstats data. Their first rows are numeric column headers, matching the upstream loader, so we skip one row before reshaping each pose to \(22\times3\).

candidate_directories = [
    Path("../_static/data/hands"),
    Path("docs/_static/data/hands"),
]
data_directory = next(path for path in candidate_directories if path.exists())

raw_hands = np.loadtxt(data_directory / "hands.txt", skiprows=1).reshape(-1, 22, 3)
labels = np.loadtxt(data_directory / "labels.txt", skiprows=1, dtype=int)
label_names = {0: "Grab", 1: "Expand"}

bones = np.array(
    [
        [0, 1], [0, 2], [2, 3], [3, 4], [4, 5],
        [1, 6], [6, 7], [7, 8], [8, 9],
        [1, 10], [10, 11], [11, 12], [12, 13],
        [1, 14], [14, 15], [15, 16], [16, 17],
        [1, 18], [18, 19], [19, 20], [20, 21],
    ]
)

print("landmark array:", raw_hands.shape)
for label, name in label_names.items():
    print(f"{name:6s}: {int(np.sum(labels == label))} poses")

landmark array: (52, 22, 3)
Grab  : 25 poses
Expand: 27 poses

Remove translation and scale

KendallShape.project centers every configuration and normalizes its Frobenius norm. Rotation is not removed by choosing one permanent alignment; it is handled by the quotient operations whenever distances and logarithms are evaluated.

M = KendallShape(size=(22, 3))
hands = M.project(jnp.asarray(raw_hands))

centroid_norms = jnp.linalg.norm(jnp.mean(hands, axis=1), axis=1)
preshape_norms = jnp.linalg.norm(hands, axis=(1, 2))

print("All projected hands are regular pre-shapes:", bool(jnp.all(M.belongs(hands))))
print("Largest centroid norm:", f"{float(jnp.max(centroid_norms)):.3e}")
print("Largest unit-norm error:", f"{float(jnp.max(jnp.abs(preshape_norms - 1))):.3e}")
print("Intrinsic dimension:", M.dim)

All projected hands are regular pre-shapes: True
Largest centroid norm: 7.182e-16
Largest unit-norm error: 2.220e-16
Intrinsic dimension: 59

Compute intrinsic group means

At a current estimate \(\mu\), the Fréchet objective and its gradient are

\[ F(\mu)=\frac1N\sum_{i=1}^N d(\mu,X_i)^2, \qquad \operatorname{grad}F(\mu) =-\frac{2}{N}\sum_{i=1}^N\operatorname{Log}_{\mu}(X_i). \]

GeoJAX’s public nearest_centroid_classifier computes one weighted Fréchet mean per class with deterministic medoid initialization. This avoids giving the tutorial a second, subtly different implementation of a core learning routine.

Every fourth observation is held out before estimating the two means. This is a deterministic illustrative split, not a claim of benchmark performance.

sample_ids = np.arange(len(labels))
train_mask = sample_ids % 4 != 0
test_mask = ~train_mask

classifier = nearest_centroid_classifier(
    M,
    hands[jnp.asarray(train_mask)],
    labels[train_mask],
    maxiter=60,
    tol=1e-7,
)
means = classifier.centers
mean_histories = []
for label, result in enumerate(classifier.diagnostics["class_fits"]):
    group_size = int(np.sum(train_mask & (labels == label)))
    mean_histories.append(np.asarray([
        entry.gradnorm for entry in result.diagnostics["history"]
    ]))
    print(
        f"{label_names[label]:6s}: {group_size:2d} training poses, "
        f"{result.iterations:2d} iterations, final norm "
        f"{float(result.gradient_norm):.3e} ({result.reason})"
    )

print("Distance between group means:", f"{float(M.dist(means[0], means[1])):.4f}")

Grab  : 18 training poses, 60 iterations, final norm 1.140e-06 (Maximum iteration count reached: options.maxiter = 60.)
Expand: 21 training poses, 48 iterations, final norm 4.872e-08 (gradient tolerance reached)
Distance between group means: 0.2602

Classify by the nearest mean

For each hand \(X\), we compute the two intrinsic distances \(d(X,\mu_{\mathrm{Grab}})\) and \(d(X,\mu_{\mathrm{Expand}})\). The smaller one determines the predicted pose.

distances = pairwise_distances(M, hands, means)
predictions = np.asarray(classifier.predict(hands))
test_accuracy = np.mean(predictions[test_mask] == labels[test_mask])

print(f"Held-out poses: {int(np.sum(test_mask))}")
print(f"Correct predictions: {int(np.sum(predictions[test_mask] == labels[test_mask]))}")
print(f"Held-out accuracy: {test_accuracy:.1%}")
print("\nHeld-out confusion counts (truth -> prediction)")
for truth in (0, 1):
    counts = [
        int(np.sum(test_mask & (labels == truth) & (predictions == prediction)))
        for prediction in (0, 1)
    ]
    print(f"{label_names[truth]:6s}: Grab={counts[0]:2d}, Expand={counts[1]:2d}")

Held-out poses: 13
Correct predictions: 11
Held-out accuracy: 84.6%

Held-out confusion counts (truth -> prediction)
Grab  : Grab= 5, Expand= 2
Expand: Grab= 0, Expand= 6

Test the two pose populations

Classification asks whether a rule predicts held-out labels. Fréchet ANOVA asks a different question: whether the two object-valued populations have equal location and variation in the metric space. The test combines between-group mean separation with differences in within-group Fréchet variance [Dubey and Müller, 2019].

fanova = frechet_anova(
    M,
    hands,
    jnp.asarray(labels),
    method="asymptotic",
    maxiter=60,
    tol=1e-7,
)

print("Fréchet ANOVA statistic:", f"{float(fanova.statistic):.4f}")
print("asymptotic p-value:", f"{float(fanova.pvalue):.4g}")
print(
    "group Fréchet variances:",
    np.round(np.asarray(fanova.diagnostics["group_variances"]), 5),
)

Fréchet ANOVA statistic: 41.7976
asymptotic p-value: 1.012e-10
group Fréchet variances: [0.15582 0.03582]

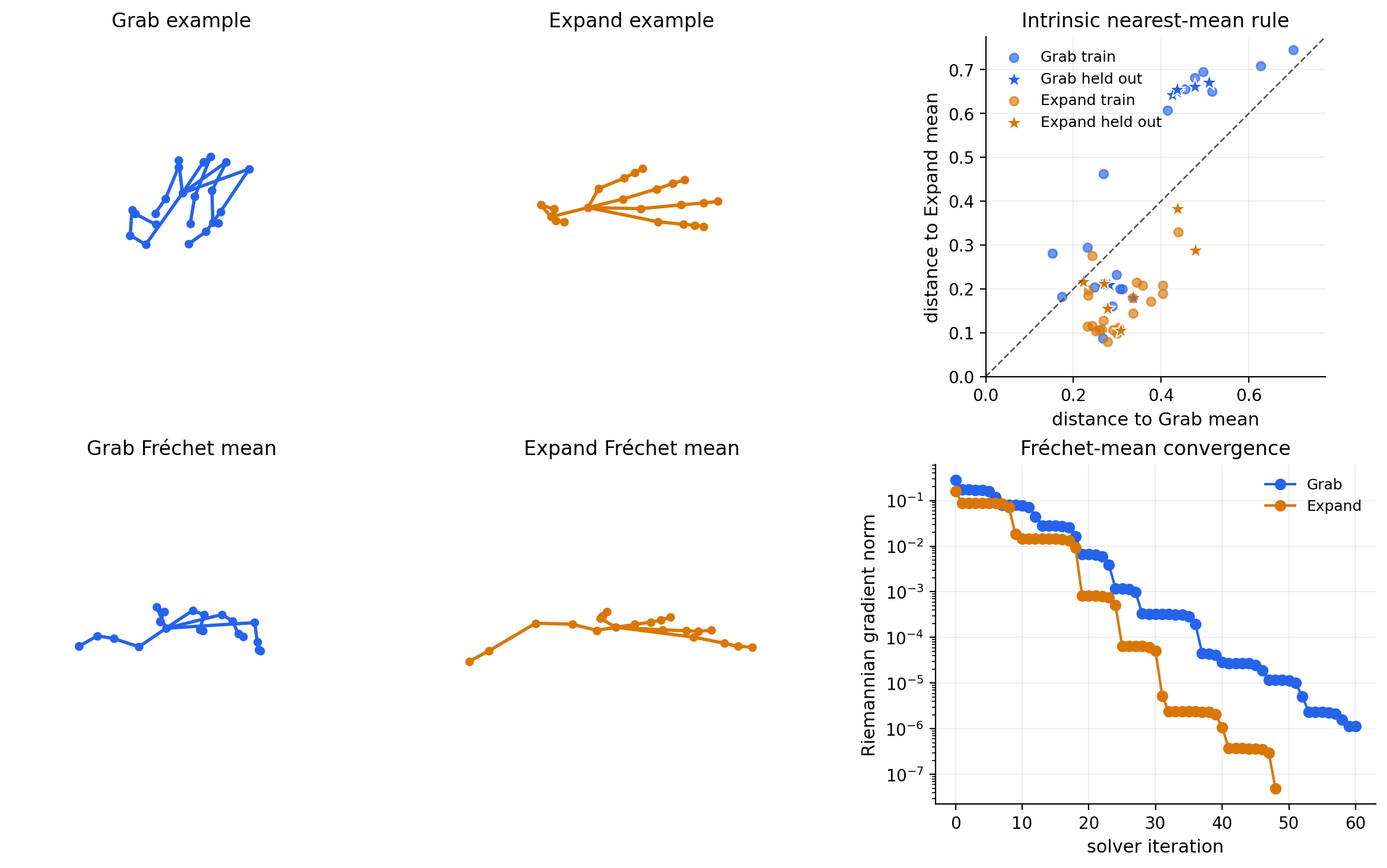

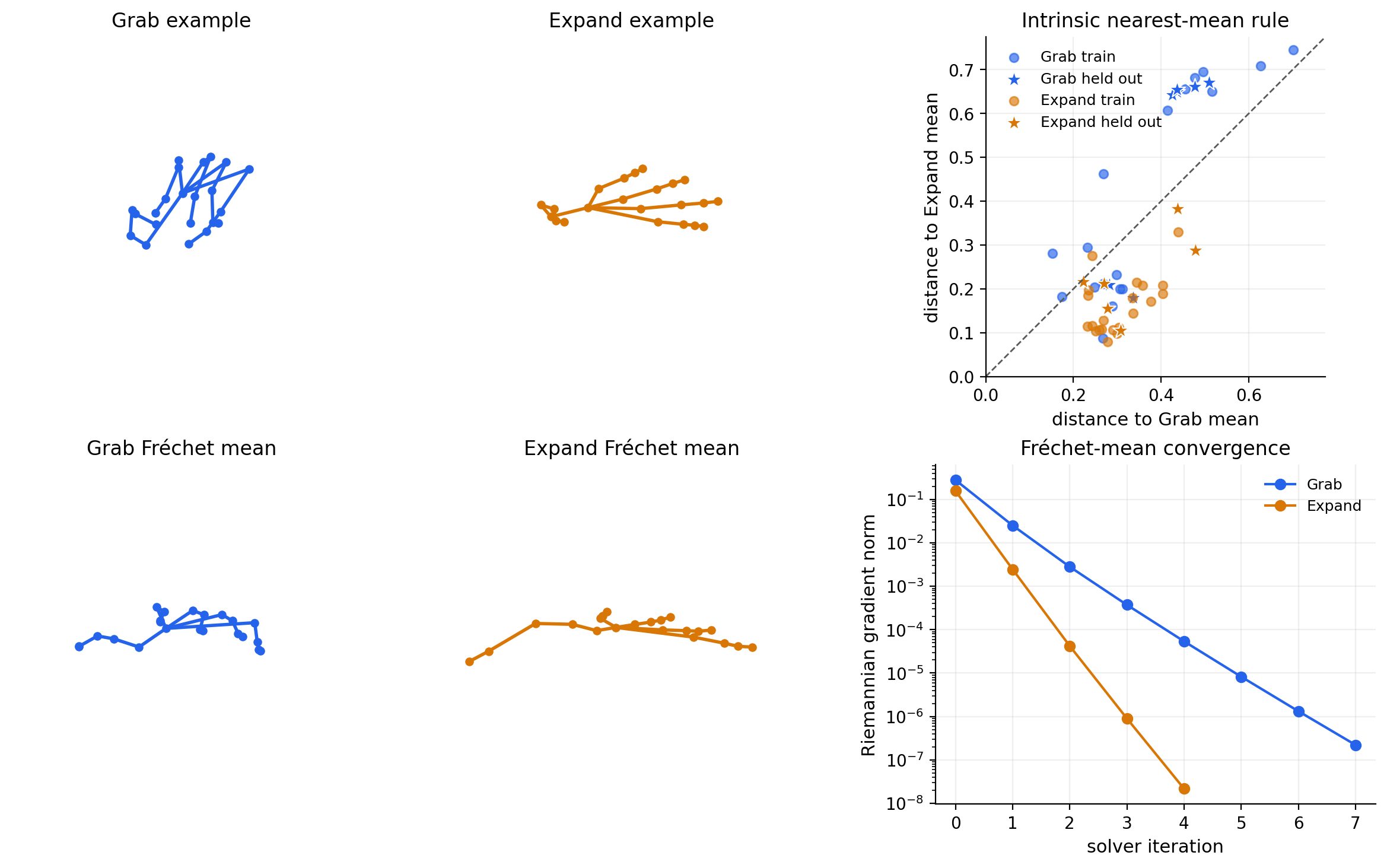

Visualize poses, means, and separation

For display only, the Expand mean is aligned to the Grab mean so both use a common orientation. The distance scatter is already quotient-invariant: points below the diagonal are closer to Grab, and points above it are closer to Expand. Stars mark the held-out observations.

colors = {0: "#2563EB", 1: "#D97706"}


def draw_hand(ax, hand, color, title):
    hand = np.asarray(hand)
    for start, end in bones:
        segment = hand[[start, end]]
        ax.plot(segment[:, 0], segment[:, 1], segment[:, 2], color=color, linewidth=2.0)
    ax.scatter(hand[:, 0], hand[:, 1], hand[:, 2], color=color, s=18, depthshade=False)
    center = np.mean(hand, axis=0)
    radius = 0.55 * np.max(np.ptp(hand, axis=0))
    for setter, coordinate in zip((ax.set_xlim, ax.set_ylim, ax.set_zlim), center):
        setter(coordinate - radius, coordinate + radius)
    ax.set_title(title)
    ax.set_box_aspect((1, 1, 1), zoom=1.35)
    ax.set_axis_off()
    ax.view_init(elev=24, azim=-58)


grab_index = int(np.flatnonzero(labels == 0)[0])
expand_index = int(np.flatnonzero(labels == 1)[0])
grab_example = M.align(hands[grab_index], means[0])[0]
expand_example = M.align(hands[expand_index], means[1])[0]
aligned_expand_mean = M.align(means[1], means[0])[0]

fig = plt.figure(figsize=(12.0, 7.2), constrained_layout=True)
grid = fig.add_gridspec(2, 3)

draw_hand(fig.add_subplot(grid[0, 0], projection="3d"), grab_example, colors[0], "Grab example")
draw_hand(
    fig.add_subplot(grid[0, 1], projection="3d"),
    expand_example,
    colors[1],
    "Expand example",
)
draw_hand(fig.add_subplot(grid[1, 0], projection="3d"), means[0], colors[0], "Grab Fréchet mean")
draw_hand(
    fig.add_subplot(grid[1, 1], projection="3d"),
    aligned_expand_mean,
    colors[1],
    "Expand Fréchet mean",
)

distance_axis = fig.add_subplot(grid[0, 2])
distance_array = np.asarray(distances)
for label in (0, 1):
    training = train_mask & (labels == label)
    held_out = test_mask & (labels == label)
    distance_axis.scatter(
        distance_array[training, 0],
        distance_array[training, 1],
        color=colors[label],
        alpha=0.65,
        s=28,
        label=f"{label_names[label]} train",
    )
    distance_axis.scatter(
        distance_array[held_out, 0],
        distance_array[held_out, 1],
        color=colors[label],
        edgecolor="white",
        marker="*",
        s=105,
        linewidth=0.7,
        label=f"{label_names[label]} held out",
    )
limit = 1.04 * float(jnp.max(distances))
distance_axis.plot([0, limit], [0, limit], color="0.35", linestyle="--", linewidth=1.0)
distance_axis.set(
    xlim=(0, limit),
    ylim=(0, limit),
    xlabel="distance to Grab mean",
    ylabel="distance to Expand mean",
    title="Intrinsic nearest-mean rule",
)
distance_axis.set_aspect("equal")
distance_axis.grid(alpha=0.2)
distance_axis.legend(frameon=False, fontsize=9)

convergence_axis = fig.add_subplot(grid[1, 2])
for label, history in enumerate(mean_histories):
    convergence_axis.semilogy(
        np.arange(len(history)),
        history,
        marker="o",
        color=colors[label],
        label=label_names[label],
    )
convergence_axis.set(
    xlabel="solver iteration",
    ylabel="Riemannian gradient norm",
    title="Fréchet-mean convergence",
)
convergence_axis.grid(alpha=0.2)
convergence_axis.legend(frameon=False)

plt.show()

The group means summarize the characteristic joint configuration after translation, scale, and orientation have been removed. The classifier is deliberately simple: it demonstrates that intrinsic distances can expose pose information, but a serious evaluation would use repeated subject-aware splits, uncertainty estimates, and comparisons with tangent-space or skeletal models.

References

[DSWV+17]

Quentin De Smedt, Hazem Wannous, Jean-Philippe Vandeborre, Joris Guerry, Bertrand Le Saux, and David Filliat. SHREC'17 track: 3d hand gesture recognition using a depth and skeletal dataset. In Eurographics Workshop on 3D Object Retrieval, 33–38. The Eurographics Association, 2017. doi:10.2312/3dor.20171049.

[DMuller19]

Paromita Dubey and Hans-Georg Müller. Fréchet analysis of variance for random objects. Biometrika, 106(4):803–821, 2019. doi:10.1093/biomet/asz052.

[Ken84]

David G. Kendall. Shape manifolds, procrustean metrics, and complex projective spaces. Bulletin of the London Mathematical Society, 16(2):81–121, 1984. doi:10.1112/blms/16.2.81.
